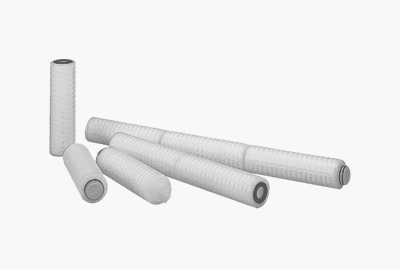

EUTEC™ MF / AM series product description
PTFE membrane filter, density gradient typeA-FPP
For filtration of pure water, acids, alkalis, photoresists and various other chemicals
| (1) Applications | Microfiltration of irregular-shaped particles in water, acids, alkalis and photoresists |
|---|---|
| (2) Characteristics | Achieve a pore density gradient through a combination of high-precision PTFE membrane and unwoven PP fibers |
| (3) Materials | PTFE + PP |
| (4) Filter rating | abs 1.0μm ~ 7.0μm |
| (5) Dimensions | OD (outer diameter) φ70 x 10 inch ~ 30 inc |
| (6) Max. operating temperature | 80℃ (*may vary depending on target fluid) |
| (7) Max. operating pressure | 0.29MPa |
Materials
| 1. External casing |
Polypropylene (PP) |
|---|---|
| 2. Support net |
Polypropylene (PP) |
| 3. Secondary filter media |
Polypropylene (PP) |
| 4. Main filter media |
PTFE & PP |
| 5. Support net |
Polypropylene (PP) |
| 6. Internal casing |
Polypropylene (PP) |
| 7. Plate |
Polypropylene (PP) |
| 8. Gasket |
Specifications
| A-FPP series | 100 | 200 | 700 | |
|---|---|---|---|---|
| Absolute filter rating (μm) | 1.0 | 2.0 | 7.0 | |
| Dimensions | Overall length (mm) |
10inch(241.5mm) 20inch(501.4mm) 30inch(760.3mm) | ||
| Outside diameter (mm) |
70 | |||
| Inside diameter (mm) |
28 | |||
| Filter surface area (cm2) | 10000 | |||
| Max. operating temperature (℃) | 80 | |||
| Max. operating pressure (MPa) | 0.29 | |||
* [Filter surface area] indicates surface area per every 10 inches of length.
* [Max. operating temperature] indicates maximum operating temperature when passing water (hot water) through the filter media.
Model code
a～c
| Filter rating | |
|---|---|
| Code | Rating |
| 100 |
abs. 1.0μm |
| 200 |
abs. 0.2μm |
| 700 |
abs. 0.45μm |
d
| Length indicator |
|
|---|---|
| Code | Length |
| 1 |
10 inch |
| 2 |
20 inch |
| 3 |
30 inch |
e
| Seal shape | |
|---|---|
| Code | Shape |
| F | Flat DOE |
| T | 226 O-ring SOE Fin○ |
| P | 226 O-ring SOE Fin× |
| W | 222 O-ring SOE Fin○ |
| M | 222 O-ring SOE Fin× |
- DOE；Double Open End
(bottom end open) - SOE；Single Open End (bottom end open)
- Fin○；Finned
- Fin×；Finless
f
| O-ring material |
|
|---|---|
| Code | Material |
| N |
NBR |
| S |
Silicon |
| E |
EPR |
| V |
FPM |
| T | PTFE (gasket) |
| F | PFA capsule (O-ring) |
| R | Soft PTFE (gasket) |
Flow rate / pressure drop characteristics
