EUTEC™ MF / AM series product description
PES membrane filter Standard typeAMSP
For final filtration of ultrapure water, plating and etching fluids, etc.
| (1) Applications | Final-stage filtration of ultrapure water, plating fluids, etching fluids and other such fluids |
|---|---|
| (2) Characteristics | High-precision rated microfilters that utilize a high-void (high-porosity) PES membrane with a sharp pore gradient |
| (3) Materials | PES + PP |
| (4) Filter rating | abs 0.1μm ~ 0.4μm |
| (5) Dimensions | OD (outer diameter) φ70 x 10 inch ~ 30 inc |
| (6) Max. operating temperature | 80℃ (*may vary depending on target fluid) |
| (7) Max. operating pressure | 0.39MPa |
Materials
| 1. External casing |
Polypropylene (PP) |
|---|---|
| 2. Secondary filter media |
Polypropylene (PP) |
| 3. Main filter media |
Polyethersolfone (PES) |
| 4. Secondary filter media |
Polypropylene (PP) |
| 5. Internal casing |
Polypropylene (PP) |
| 6. Plate |
Polypropylene (PP) |
| 7. Gasket |
Specifications
| AMSP series | 010 | 020 | 045 | |
|---|---|---|---|---|
| Absolute filter rating (μm) | 0.1 | 0.2 | 0.45 | |
| Dimensions | Overall length (mm) |
10inch(250mm) 20inch(500mm) 30inch(750mm) | ||
| Outside diameter (mm) |
70 | |||
| Inside diameter (mm) |
25.9 | |||
| Filter surface area (cm2) | 7000 | |||
| Max. operating temperature (℃) | 80 | |||
| Max. operating pressure (MPa) | 0.39 | |||
* [Filter surface area] indicates surface area per every 10 inches of length.
* [Max. operating temperature] indicates maximum operating temperature when passing water (hot water) through the filter media.
Model code
a～c
| Filter rating | |
|---|---|
| Code | Rating |
| 010 |
abs. 0.1μm |
| 020 |
abs. 0.2μm |
| 045 |
abs. 0.45μm |
d
| Length indicator |
|
|---|---|
| Code | Length |
| 1 |
10 inch |
| 2 |
20 inch |
| 3 |
30 inch |
e
| Seal shape | |
|---|---|
| Code | Shape |
| F | Flat DOE |
| T | 226 O-ring SOE Fin○ |
| P | 226 O-ring SOE Fin× |
| W | 222 O-ring SOE Fin○ |
| M | 222 O-ring SOE Fin× |
- DOE；Double Open End
(both ends open) - SOE；Single Open End (bottom end open)
- Fin○；Finned
- Fin×；Finless
f
| Gasket / O-ring material |
|
|---|---|
| Code | Material |
| N |
NBR |
| S |
Silicon |
| E |
EPR |
| V |
FPM |
| T | PTFE (gasket) |
| F | PFA capsule (O-ring) |
| R | Soft PTFE (gasket) |

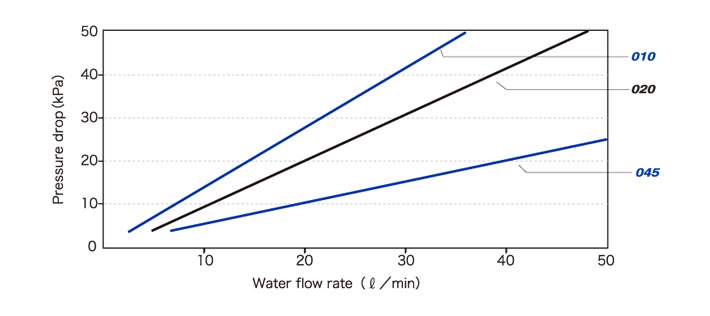

Flow rate / pressure drop characteristics
